Telescopic Spreader Bar Manufacturer in Saudi Arabia
When a single load spans a wide area or has multiple pick-up points at varying distances, a Telescopic Spreader Bar from Century Experts gives site teams the flexibility to adjust the lifting arrangement on the spot, rather than fabricating a separate fixed beam for every load size.
Built from high-grade structural steel and assembled by certified welders, our Telescopic Spreader Bars extend or retract to match the exact width of the load being handled, distributing weight evenly across multiple sling points and keeping the load stable and level throughout the lift — a critical requirement when working with long steel sections, precast panels, or modular equipment across construction, industrial, and marine sites in Saudi Arabia.
Each unit can be supplied as a standard model or engineered to a custom capacity, extended length range, and lifting point configuration, with full engineering calculations, inspection, proof load testing, and third-party certification available on request.
Century Experts delivers Telescopic Spreader Bars to project sites across Riyadh, Jeddah, Dammam, Jubail, Al Khobar, Yanbu, Makkah, Madinah, Qassim, Al Kharj, NEOM, and every other region of Saudi Arabia.
Applications
Our Telescopic Spreader Bars are suitable for:
- Structural Steel Beam and Girder Lifting
- Precast Concrete Panel and Slab Handling
- Modular Building Unit Lifting
- Pipe Rack and Pipe Spool Handling
- Wind Turbine Blade and Tower Section Lifting
- Container and Equipment Skid Lifting
- Bridge Girder Erection
- Marine and Shipyard Fabrication Lifting
- Power Plant Equipment Installation
- Multi-Point Variable-Width Lifting Operations
- Rental and Multi-Project Lifting Fleets
- General Industrial Lifting Where Load Dimensions Vary
Features
- Heavy-duty structural steel construction
- Telescopic/extendable beam sections for adjustable length
- Locking pin or bolt mechanism to secure extension length
- Multiple sling attachment points along the beam
- Central or dual top lifting points for crane connection
- Balanced design to maintain load level across variable widths
- Smooth weld finish
- Powder-coated or industrial paint finish
- Custom capacities and extension ranges available
- Identification plate with rated capacity (min/max length) and serial number
- Suitable for indoor and outdoor industrial environments
Why Choose Century Experts
- Custom-designed fabrication solutions
- Experienced engineering and fabrication team
- High-quality workmanship
- Qualified welding procedures
- Engineering calculations available
- Proof load testing available
- Third-party inspection support
- Fast manufacturing and delivery
- Complete documentation package
- Supply across all regions of Saudi Arabia
Standards & Compliance
Our Telescopic Spreader Bars are designed and manufactured in accordance with applicable project requirements and internationally recognized standards, including:
- ASME B30.20 – Below-the-Hook Lifting Devices
- ASME BTH-1 – Design of Below-the-Hook Lifting Devices
- OSHA 29 CFR 1926.1413 – Wire Rope, Below-the-Hook Devices and Rigging
- Third-party inspection requirements (upon client request)
- Client specifications and project requirements
Compliance is subject to the approved design, client specifications, applicable project requirements, and relevant regulatory standards.
Frequently Asked Questions (FAQ)
1. What is a Telescopic Spreader Bar?

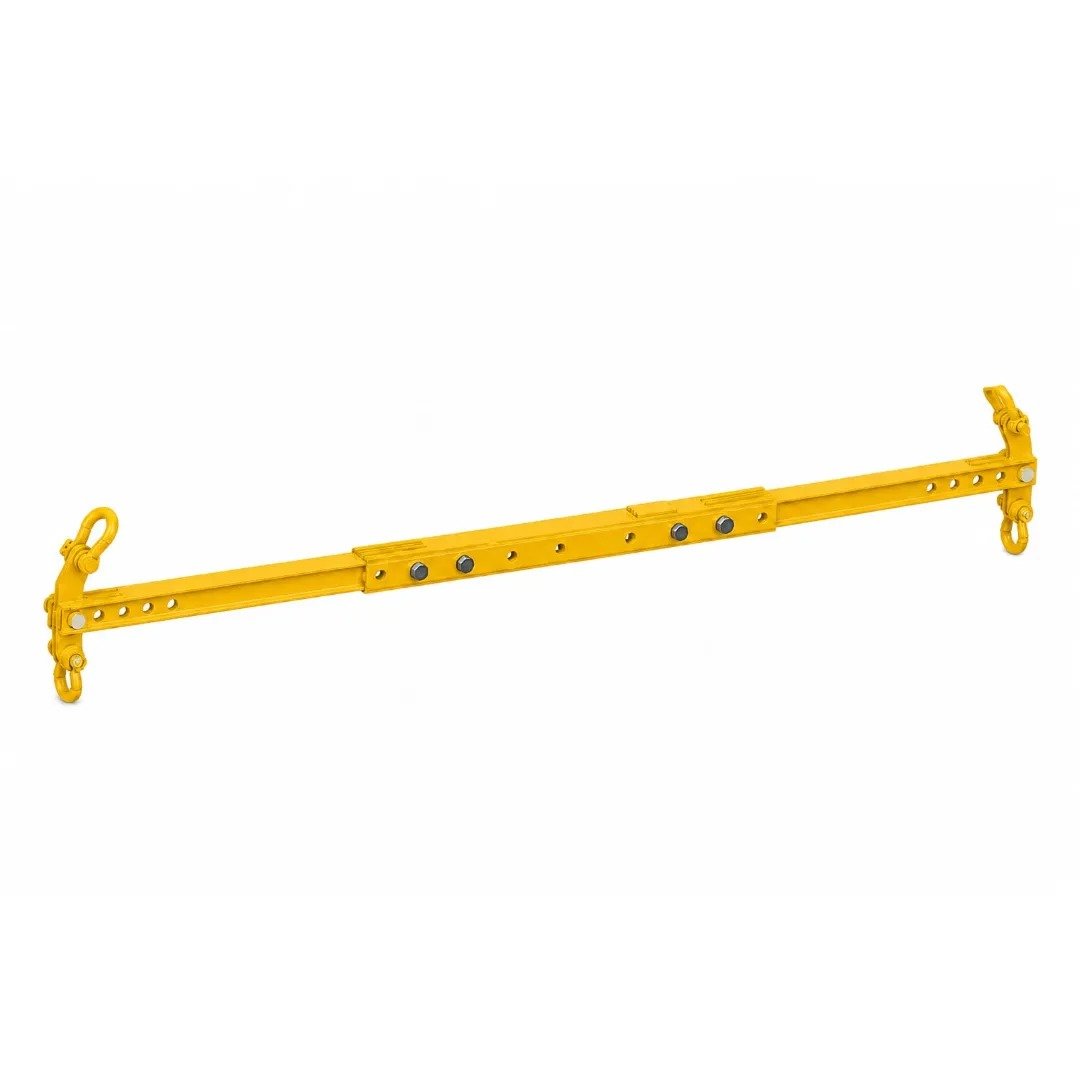

A Telescopic Spreader Bar is an extendable steel lifting beam that can be adjusted in length to match the width or pick-up point spacing of different loads, allowing a single spreader bar to handle multiple load sizes instead of requiring a separate fixed-length beam for each one.
2. How does the telescopic extension work?
The bar consists of an outer and inner beam section that slide relative to each other, with the extended length secured using a locking pin, bolt, or clamping mechanism once the correct length for the load has been set.
3. Is the spreader bar as strong when fully extended as when retracted?
The rated capacity of a telescopic spreader bar typically decreases as it is extended further, since the bending moment on the beam increases with length. The identification plate and load chart specify the safe working load at different extension lengths, and this should always be checked before lifting.
4. What load capacities are available?
We manufacture Telescopic Spreader Bars from light-duty capacities for general fabrication use up to heavy-duty capacities for structural steel, precast, and marine lifting, with capacity and extension range engineered to match specific project requirements.
5. How many lifting points does the spreader bar have?
Most units have multiple sling attachment points spaced along the beam, with a central or dual top connection to the crane hook, and point spacing can often be adjusted to suit the sling arrangement being used.
6. Can the extension length be locked at any position, or only at fixed increments?
This depends on the design. Some spreader bars lock at fixed pre-drilled increments for repeatable, verified capacities at each setting, while others use a continuous clamping system; we can advise which option suits your typical range of load widths.
7. What standards does your Telescopic Spreader Bar comply with?
Our Telescopic Spreader Bars can be designed and manufactured in accordance with ASME B30.20, ASME BTH-1, OSHA 29 CFR 1926.1413, and project-specific client requirements.
8. Is testing and certification available for the spreader bar?
Yes. We provide proof load testing, third-party inspection through approved agencies, and a Certificate of Conformity for every Telescopic Spreader Bar, along with an identification plate showing rated capacity at each extension setting and serial number.
9. Can the spreader bar be customized for our project’s load range?
Yes. We fabricate Telescopic Spreader Bars to custom minimum/maximum length, capacity, sling point spacing, and finish, based on the range of load widths and lifting method used at your site.
