Lifting Beam Manufacturer in Saudi Arabia

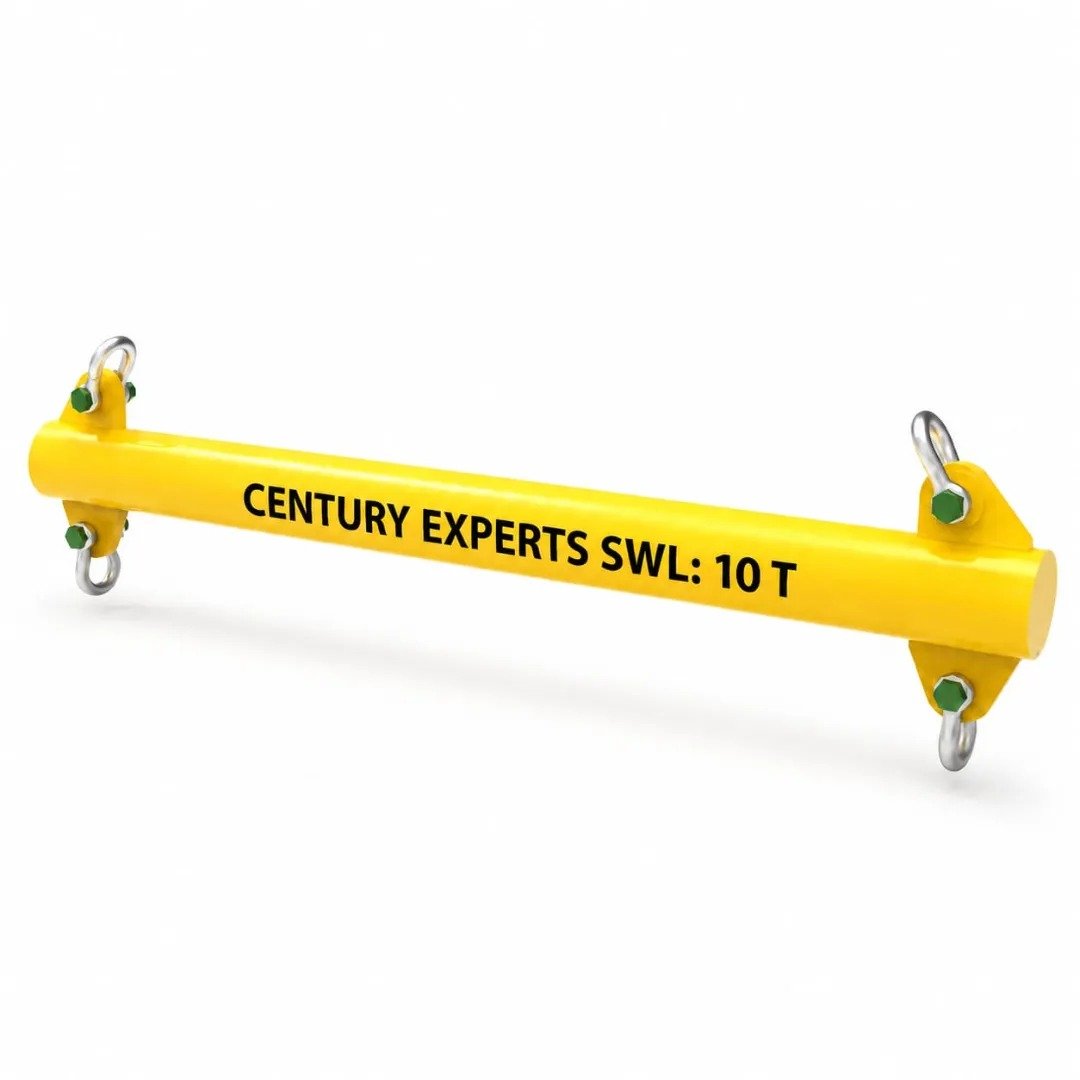

Some loads simply need one solid, dependable pick-up point rather than a bundle of slings pulling in different directions. That’s exactly what a Lifting Beam from Century Experts is built to provide — a single-purpose steel spreader that turns an awkward multi-point lift into a controlled, level, single-hook operation.
Every Lifting Beam we produce is fabricated from certified structural steel sections, welded by qualified personnel under approved procedures, and engineered so the load hangs level with minimal side-loading on the rigging. Whether the job calls for moving structural steel, machinery, precast units, or fabricated assemblies, our beams are sized and rated specifically for the task at hand rather than adapted from off-the-shelf stock.
Century Experts offers both ready-to-order standard Lifting Beams and fully custom-engineered designs, built to the exact length, capacity, and lifting point layout your project requires. Full engineering calculations, weld inspection, proof load testing, and third-party certification are available on request.
Our Lifting Beams are supplied to project sites and workshops across Riyadh, Jeddah, Dammam, Jubail, Al Khobar, Yanbu, Makkah, Madinah, Qassim, Al Kharj, NEOM, and all other regions of Saudi Arabia.
Applications
Our Lifting Beams are suitable for:
- Structural Steel Erection
- Machinery and Equipment Installation
- Precast Concrete Element Handling
- Container and Skid Lifting
- Tank and Vessel Section Lifting
- Warehouse and Factory Material Movement
- Power Plant Equipment Handling
- Marine and Shipyard Fabrication Lifting
- Prefabricated Module Lifting
- Loading and Unloading Operations
- Production Line Component Handling
- General Industrial Single-Point Lifting Requirements
Features
- Heavy-duty structural steel construction
- Single top lifting point for crane hook connection
- Engineered lower attachment points for slings or shackles
- Reduced sling angle and side-loading during lifts
- Smooth weld finish
- Powder-coated or industrial paint finish
- Custom lengths, capacities, and lifting point layouts available
- Identification plate with rated capacity and serial number
- Suitable for indoor and outdoor industrial environments
Why Choose Century Experts
- Custom-designed fabrication solutions
- Experienced engineering and fabrication team
- High-quality workmanship
- Qualified welding procedures
- Engineering calculations available
- Proof load testing available
- Third-party inspection support
- Fast manufacturing and delivery
- Complete documentation package
- Supply across all regions of Saudi Arabia
Standards & Compliance
Our Lifting Beams are designed and manufactured in accordance with applicable project requirements and internationally recognized standards, including:
- ASME B30.20 – Below-the-Hook Lifting Devices
- ASME BTH-1 – Design of Below-the-Hook Lifting Devices
- OSHA 29 CFR 1926.1413 – Wire Rope, Below-the-Hook Devices and Rigging
- Third-party inspection requirements (upon client request)
- Client specifications and project requirements
Compliance is subject to the approved design, client specifications, applicable project requirements, and relevant regulatory standards.
Frequently Asked Questions (FAQ)
1. What is a Lifting Beam?
A Lifting Beam is a structural steel device connected between the crane hook and the load’s rigging, providing a single top pick-up point while distributing the load across two or more lower attachment points, keeping the load level and reducing stress on the slings.
2. When should a Lifting Beam be used instead of a chain sling set?
A lifting beam is preferable when a load is long, wide, delicate, or sensitive to side-loading, since it keeps slings vertical below the beam rather than angled inward toward a single hook, which reduces compressive force on the load and tension on the rigging.
3. What load capacities do you manufacture?
We manufacture Lifting Beams from light-duty capacities for workshop and general handling up to heavy-duty capacities for structural steel, precast, and industrial equipment lifting, with the exact rating engineered to the specific application.
4. How many lifting points does the beam typically have?
Most Lifting Beams have one top point for the crane hook and two or more lower points for slings or shackles, though the number and spacing of lower points is engineered around the shape and balance point of the load being lifted.
5. Can a Lifting Beam be designed for an irregular or off-center load?
Yes. Where a load’s center of gravity is not centered along its length, the lifting points can be positioned off-center during design so the load still hangs level once lifted, based on load drawings or measurements provided by the client.
6. Is the beam self-weight a factor I need to account for?
Yes. The beam’s own weight adds to the total load being handled by the crane, so the crane’s capacity should be checked against the combined weight of the beam plus the load, not the load weight alone.
7. What standards does your Lifting Beam comply with?
Our Lifting Beams can be designed and manufactured in accordance with ASME B30.20, ASME BTH-1, OSHA 29 CFR 1926.1413, and project-specific client requirements.
8. Is testing and certification available for the Lifting Beam?
Yes. We provide proof load testing, third-party inspection through approved agencies, and a Certificate of Conformity for every Lifting Beam, along with an identification plate showing rated capacity and serial number.
9. Can the beam be customized for our specific load or lifting method?
Yes. We fabricate Lifting Beams to custom length, capacity, lifting point layout, and finish, based on the load dimensions, weight, and rigging arrangement used at your site.
