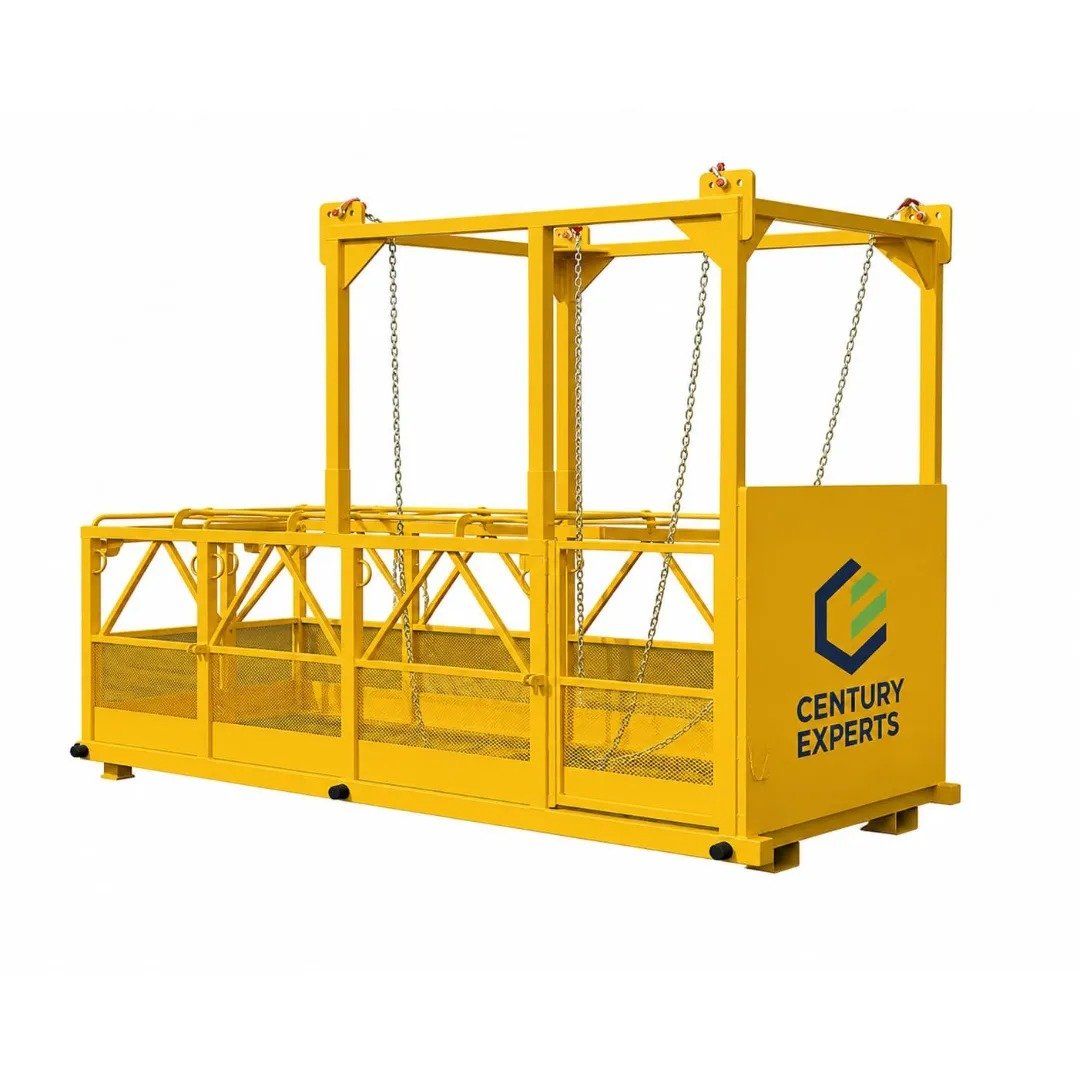

Cantilever Crane Man Basket Manufacturer in Saudi Arabia
Century Experts is a trusted manufacturer and supplier of Cantilever Crane Man Baskets, engineered for the safe lifting of personnel in locations where extended reach or offset access is required. Our cantilever design allows workers to safely access areas that are difficult to reach with conventional crane man baskets, making it ideal for construction, oil & gas, petrochemical, marine, power generation, and industrial maintenance applications.
Our Cantilever Personnel Lifting Baskets are fabricated from high-quality structural steel by qualified welders using approved welding procedures. The extended cantilever platform provides additional working reach beyond the crane hook centerline while maintaining structural integrity, stability, and personnel safety during lifting operations.
We manufacture both standard and custom-engineered Cantilever Crane Man Baskets in various sizes, capacities, and cantilever projections to meet specific project requirements. Engineering calculations, structural verification, proof load testing, inspection, and third-party certification are available upon request.
We proudly supply Cantilever Crane Man Baskets throughout Riyadh, Jeddah, Dammam, Jubail, Al Khobar, Yanbu, Makkah, Madinah, Qassim, Al Kharj, NEOM, and across Saudi Arabia.
Applications
Our Cantilever Crane Man Baskets are suitable for:
- Pipe Rack Inspection and Maintenance
- Tank Roof and Vessel Access
- Structural Steel Erection
- Bridge Inspection Projects
- Refinery Shutdown & Turnaround Maintenance
- Offshore Platform Maintenance
- Power Plant Inspection Works
- Building Façade Access
- Overhead Equipment Maintenance
- Restricted Access Work Areas
- Equipment Installation Projects
- General Industrial Maintenance
Features
- Heavy-duty structural steel construction
- Cantilever platform for extended working reach
- Engineered lifting lugs
- Anti-slip checker plate flooring
- Full-height safety handrails
- Self-closing inward-opening safety gate
- Toe boards for enhanced personnel protection
- Certified harness anchor points
- Forklift pockets for easy transportation
- Smooth weld finish with quality inspection
- Industrial paint or hot-dip galvanized finish available
- Custom cantilever lengths and platform sizes
- Identification plate with unique serial number
- Designed for demanding industrial environments
Why Choose Century Experts
- Custom-designed cantilever man baskets for challenging access applications
- Experienced engineering and fabrication team
- Precision fabrication with qualified welding procedures
- Engineering calculations and design verification
- Proof load testing available
- Third-party inspection support
- Fast manufacturing and delivery across Saudi Arabia
- Complete documentation and quality records
- Competitive pricing with custom fabrication options
- Reliable after-sales technical support
Standards & Compliance
Our Cantilever Crane Man Baskets are designed and manufactured in accordance with applicable project requirements and internationally recognized standards, including:
- EN 14502-1 – Cranes – Equipment for the Lifting of Persons – Suspended Baskets
- ASME B30.23 – Personnel Lifting Systems
- ANSI/ASSP A10.28 – Safety Requirements for Work Platforms Supported by Cranes, Derricks, and Hoists
- OSHA 29 CFR 1926.1431 – Hoisting Personnel by Cranes and Derricks
- Third-party inspection and proof load testing (available upon request)
- Project specifications and client engineering requirements
Compliance is subject to the approved design, intended operating conditions, client specifications, applicable project requirements, and relevant regulatory standards.
Frequently Asked Questions (FAQ)
1. What is a Crane Cantilever Man Basket?
A Crane Cantilever Man Basket is a personnel lifting platform fitted with an extended cantilever arm or boom section, allowing workers to be positioned at a horizontal offset from the crane’s hook line. This design is used when the work location cannot be reached by a basket suspended directly beneath the hook, such as beam ends, tank sidewalls, or offshore jacket structures.
2. How does a Cantilever Man Basket differ from a standard suspended basket?
A standard basket hangs directly below the crane hook, while a Cantilever Man Basket extends outward on a rigid arm or frame, shifting the working platform away from the hook’s vertical line. This allows access to horizontal reach points but requires additional engineering to manage the offset load and reduced stability compared to a directly suspended basket.
3. How is the cantilever arm load calculated?
The cantilever arm is engineered using structural calculations that account for the basket’s rated capacity, the horizontal offset distance, the resulting overturning moment, and the combined center of gravity of the basket, occupants, and equipment. These calculations determine the arm’s cross-section, bracing requirements, and counterweight or back-span needs, and are available upon request.
4. Does the cantilever design affect the safe working load (SWL)?
Yes. Because the load is offset from the hook’s centerline, the effective working load is typically lower than the basket’s structural capacity alone, due to the added overturning moment. The final SWL is confirmed based on the cantilever length, crane radius, and load chart of the specific crane being used.
5. Is the cantilever arm length fixed or adjustable?
We manufacture both fixed-length and adjustable/telescopic cantilever arms, depending on project requirements. Adjustable arms allow the reach distance to be modified on site, while fixed arms are engineered for a specific, repeatable offset dimension.
6. What standards does your Crane Cantilever Man Basket comply with?
Our Crane Cantilever Man Baskets can be designed and manufactured in accordance with EN 14502-1, ASME B30.23, ANSI/ASSP A10.28, OSHA 29 CFR 1926.1431, and project-specific client requirements, with additional engineering review for the cantilever offset.
7. What applications require a cantilever configuration?
Cantilever baskets are commonly used for tank shell and roof access, ship hull and offshore jacket inspection, bridge and beam-end works, flare stack lateral access, facade inspection where standoff is required, and other tasks where the work point sits horizontally beyond the crane’s direct hook line.
8. Is a load moment indicator (LMI) or crane load chart review required?
Yes. Due to the added overturning moment from the horizontal offset, we recommend a crane load chart and LMI review for the specific crane, radius, and cantilever length before deployment, to confirm the crane’s capacity at the required configuration.
9. Is proof load testing available for the cantilever assembly?
Yes. Proof load testing is performed on the complete assembly, including the basket and cantilever arm, in accordance with project specifications, and is documented as part of the certification package.
10. Is MPI testing carried out on the cantilever arm welds?
Yes. Magnetic Particle Inspection (MPI) is carried out on critical welds of both the basket and the cantilever arm structure, given the higher stress concentration at the arm’s connection points.
11. Does the basket include counterweights or back-span bracing?
Depending on the cantilever length and rated capacity, a counterweight or back-span bracing arrangement may be incorporated into the design to offset the overturning moment and maintain structural stability during lifting operations.
12. Can you provide third-party inspection and certification?
Yes. We can arrange third-party inspection and certification for the complete Cantilever Man Basket assembly through approved inspection agencies before delivery.
13. What capacities are available for the Cantilever Man Basket?
We manufacture 1-person, 2-person, 3-person, and custom-capacity Cantilever Man Baskets, with capacity typically determined by the required cantilever length and the resulting load moment.
14. Can the cantilever basket be customized for specific project geometry?
Yes. We design custom cantilever arm lengths, angles, and mounting arrangements, along with basket dimensions, gate configurations, flooring, and finishes, based on the specific reach and access requirements of each project.
15. Do you supply Crane Cantilever Man Baskets across Saudi Arabia?
Yes. We manufacture and supply Crane Cantilever Man Baskets throughout Riyadh, Jeddah, Dammam, Jubail, Al Khobar, Yanbu, Makkah, Madinah, Qassim, Al Kharj, NEOM, and all other regions of Saudi Arabia.
16. Why choose Century Experts for Cantilever Man Basket fabrication?
Century Experts specializes in the engineering and fabrication of Crane Cantilever Man Baskets, with in-house structural calculation support for offset loading, certified welding, proof load testing, third-party inspection, complete documentation, and reliable delivery throughout Saudi Arabia.
